iNBSController 1.0 - An iPod Touch Application for Controlling the ez-gSEAL Pressure Controller
The iNBSController 1.0 software is an iPod Touch/iPad/iPhone application that is used to control the ez-gSEAL Pressure Controller. It interfaces with our NBSController
through WiFi, and thus the iPod Touch, iPhone or iPad can act as a remote control for the ez-gSEAL pressure controller. The iNBSController can be downloaded from
the Apple App Store.
The iNBSController includes the functions in the NBSController. Users can tap any box to enter a value, which will then be sent to the NBSController. The values can
also be set in the NBSController and will be displayed in the iNBSController as soon as they are entered. The pressure output from the iNBSController is also
displayed in the iNBSController.
The iNBSController allowe users to pre-set three pressure values, P1, P2, and P3. For example, P1 can be set as the positive pressure applied before making a seal, P2 as the negative pressure
for making seal, and P3 as a small negative holding pressure used during recording. Users can also define a train of ramp pulses that get bigger and bigger (Manual Pressure Ramp).

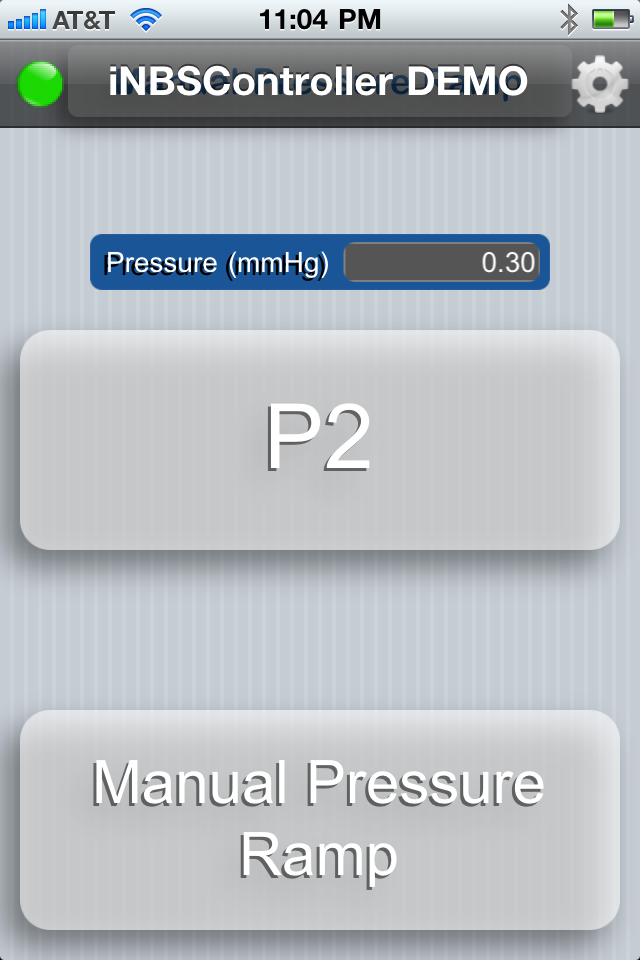

These buttons are displayed in sequence so that people can press the button they want without looking. At the beginning of the sequence, almost the entire screen is the
P1 button. As soon as the P1 button is pressed, the screen becomes P2 button. People will be able to press the P2 button to make seal without looking. After P2 is the P3 button, which, after
being tapped, shows the P2 and Manual Pressure Ramp buttons.
This is particularly useful if you have to adjust the focus with one hand and control a manipulator with the other hand while trying to generate suction to make a seal.
The iPod Touch or iPhone can be right next to your hand and you can use one little finger or elbow to touch the screen to trigger the pulse.
Requirements
- iOS version 4.3 or later
- A computer running NBSController
- A router conneted to the computer for WiFi communication
US Price
Free
Contact us for international pricing.
